PORTABLE MAN COOLERS
& DRUM FANS
HIGH-VELOCITY COOLING. WHEREVER YOU NEED IT.
The Portable Man Coolers & Drum Fans Series is built for environments where stationary fans can’t reach. Whether it’s a high-heat production line, a crowded workshop, or a specialized drying bay, these units deliver massive air displacement on demand. Engineered for the “always-on” industrial reality. Industrial Versatility: Ideal for cooling gym floors, workshops, or high-capacity food drying.
AMC SERIES | INDUSTRIAL AXIAL MAN COOLERS
SPECS AND VARIATIONS
| MODEL | DIAMETER | VOLTAGE | POWER | SPEED | AIR VOLUME | PRESSURE |
|---|---|---|---|---|---|---|
| AMC-DF5G-4 | 500mm | 220V | 0.75kw | 1430rpm | 9300m³/hr | 260Pa |
| AMC-DF5G-2 | 500mm | 220V | 1.1kw | 2900rpm | 14000 m³/hr | 350Pa |
| AMC-SF5G-4 | 500mm | 380V | 0.75kw | 1430rpm | 9300m³/hr | 196Pa |
| AMC-DF6G-4 | 600mm | 220V | 2.2kw | 1430rpm | 18700m³/hr | 294Pa |
| AMC-SF6G-4 | 600mm | 380V | 2.2kw | 1430rpm | 18700m³/hr | 294Pa |
| AMC-SF8-4 | 800mm | 380V | 4.0kw | 1430rpm | 30000m³/hr | 345Pa |
| AMC-JGF6D-4 | 600mm | 220V | 1.5kw | 1450rpm | 16800m³/hr | 285Pa |

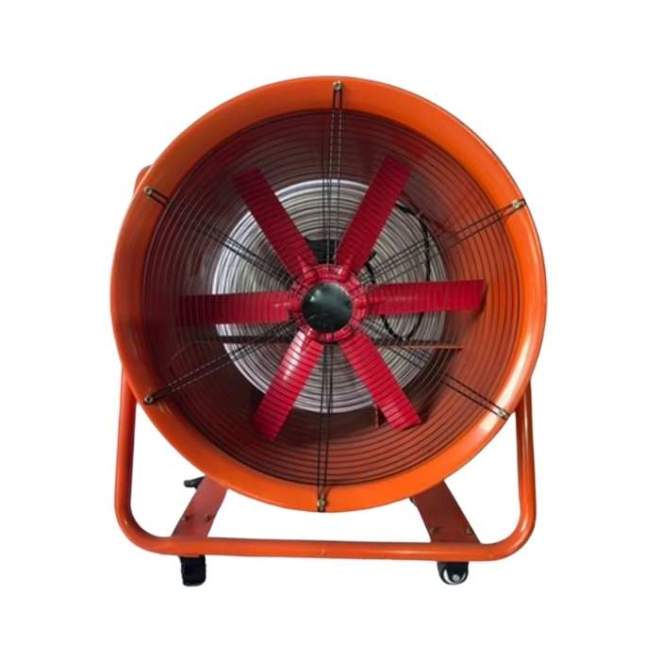

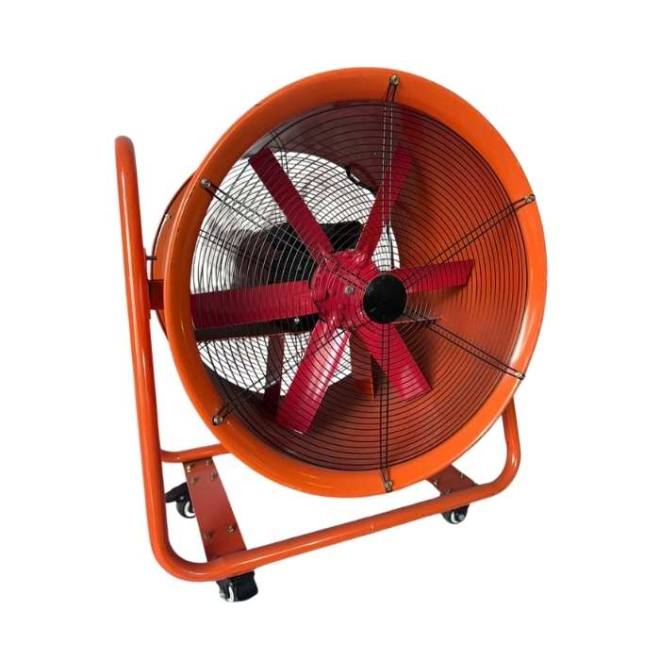

Targeted, High-Velocity Extraction and Cooling. The AMC Series of features a high-powered axial fan mounted on a reinforced mobile chassis. It’s designed to provide a concentrated “jet” of air, making it the perfect tool for cooling specific machinery or providing relief to workers in high-heat zones.
The Build: Finished in a sleek, grit-resistant matt black with heavy-duty steel safety grills.
Portability: Mounted on a rugged chassis with industrial wheels for rapid deployment.
Blade Tech: Precision-balanced aluminium blades for maximum velocity and zero vibration.
Portability: Mounted on a rugged chassis with industrial wheels for rapid deployment.
Blade Tech: Precision-balanced aluminium blades for maximum velocity and zero vibration.
IDF SERIES | INDUSTRIAL DRUM FANS
| MODEL | DIAMETER / COMPONENT | VOLTAGE | POWER | SPEED | AIR VOLUME |
|---|---|---|---|---|---|
| IDF-HVF-105L | 1050mm | 220V | 0.75kw | 850rpm | 32400m³/hr |
| IDF-HVF-75N | 750mm | 220V | 0.24kw | 910rpm | 18120m³/hr |
| IDF-HVF-65N | 650mm | 220V | 0.18kw | 910rpm | 13200m³/hr |
| IDF-HVF-105L-M | Motor Unit | 220V | 0.75kw | 850rpm | – |
| IDF-HVF-75N-M | Motor Unit | 220V | 0.24kw | 910rpm | – |
| IDF-HVF-65N-M | Motor Unit | 220V | 0.18kw | 910rpm | – |
| IDF-HVF-105L-IMP | 1050mm Impellor & Bracket | – | – | – | – |

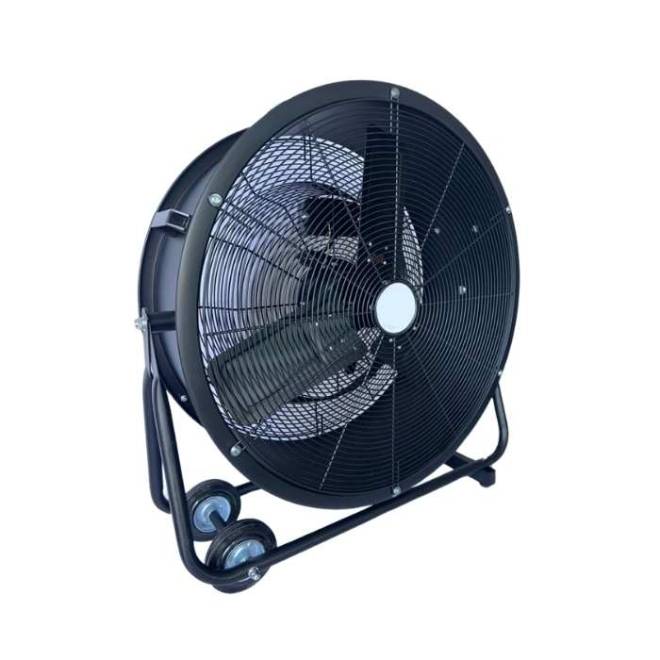

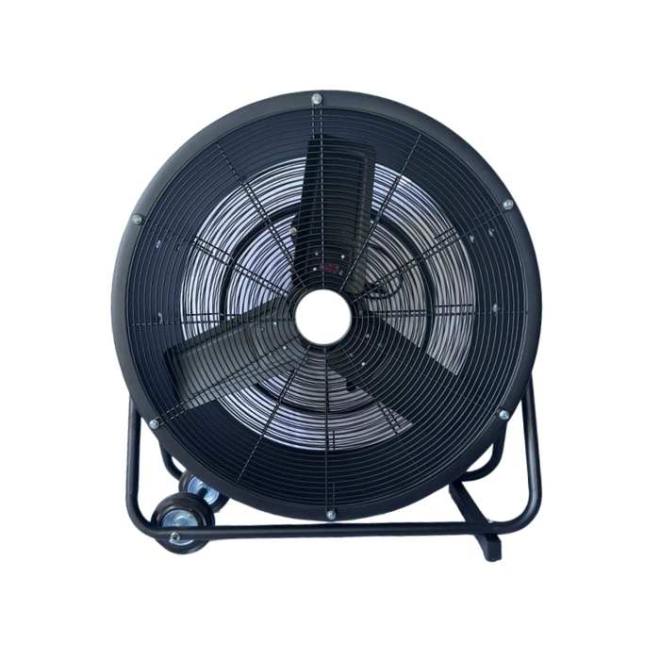

Massive Air Volume for Large-Scale Spaces. When you need to move a “wall” of air, the IDF Drum Fan is the solution. The drum-style casing focuses the airflow over longer distances, making it ideal for: large warehouses, event tents, or clearing smoke and heat from expansive factory floors.
- The Advantage: Large-diameter blades for massive cubic-meter-per-hour displacement.
- Adjustable Tilt: The drum rotates within its frame, allowing you to direct airflow vertically or horizontally.
- Reinforced Design: Built to handle the bumps and scrapes of a busy industrial environment.
TECHNICAL ADVANTAGES OF OUR PORTABLE MAN COOLERS & DRUM FANS
- Mobile Efficiency: Heavy-duty wheels designed for easy transport across uneven industrial floors.
- Thermal Protection: Motors are engineered to run cool even during 24/7 operation.
- Safety First: Close-mesh wire guards ensure maximum operator safety in any setting.
CONTACT BRU-FORCE FOR DETAILS
With over 30 years of experience, we’re ready to help! Go ahead and request a quote and we’ll get back to you as soon as possible.
