HANDHELD FIBER LASER WELDER
THEO MA1 10X FASTER WELDING

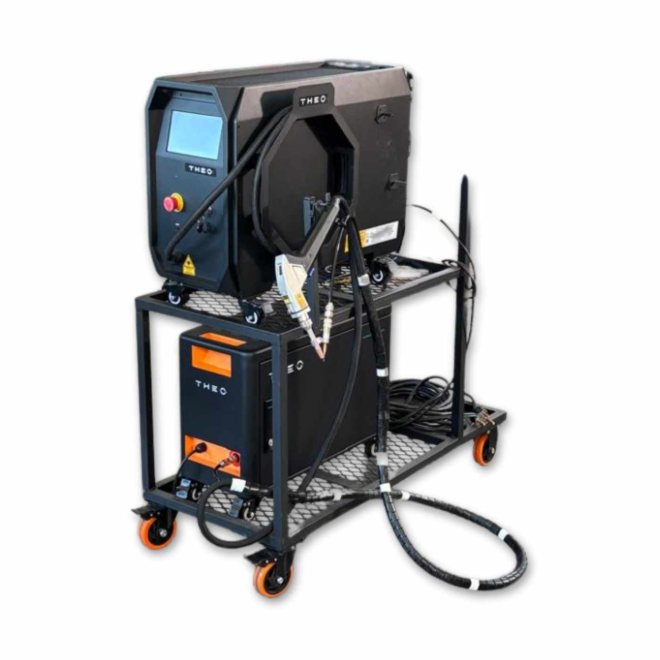

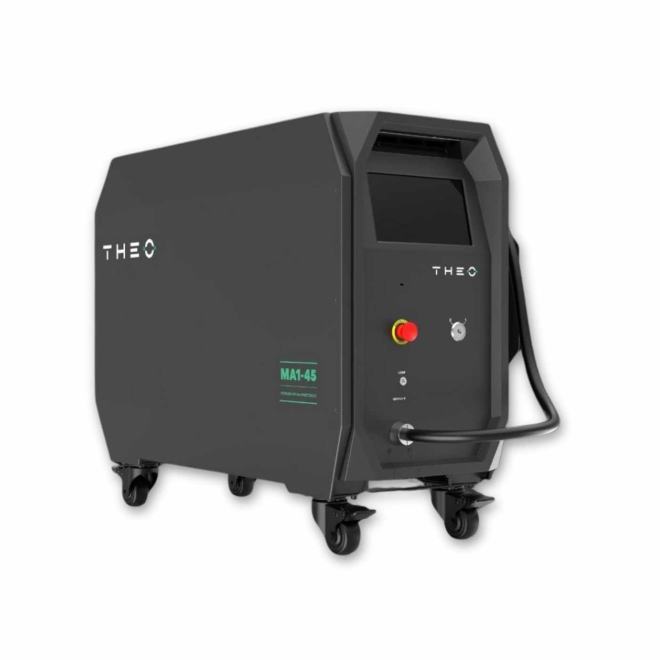

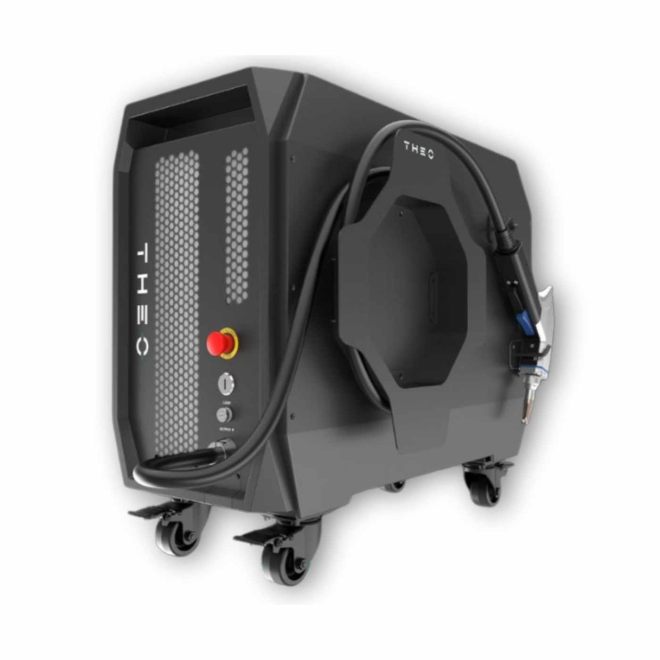

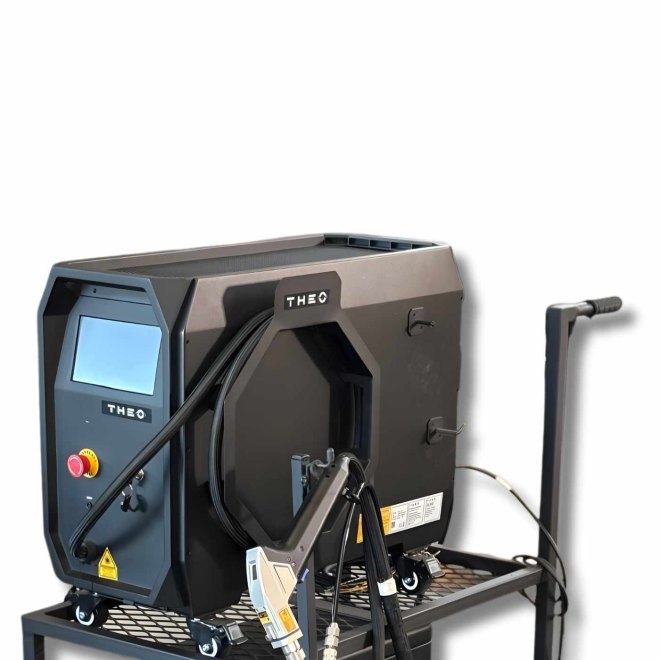

PRODUCT OVERVIEW – THEO MA1 Handheld Laser Welder
This neat and steady laser welder is a complete shift in how you handle metal fabrication. It replaces traditional welding with a lightweight handheld laser that is up to 10x faster, delivering smooth, high-strength seams with almost zero clean-up. We know very well how time consuming the traditional task of welding is, and familiarise ourselves with Industrial welding solutions for South Africa’s industrial business owners. Chat to us about our industrial welding solutions South Africa
WHY THE THEO MA1 HANDHELD LASER WELDER IS A MUST-HAVE IN SOUTH AFRICAN INDUSTRIAL SECTORS
- Insane Speed: 3–8× faster than traditional welding
- Simple to Master: No years of training required
- Perfect Quality: No warping on thin materials
- Plug & Play: Standard 220V power
- Complete Package: Wire feeder + safety goggles included
| FEATURE | TRADITIONAL WELDING (MIG/TIG) | THEO MA1 LASER WELDING |
|---|---|---|
| Production Speed | Standard speed (Jobs take hours) | Up to 10x Faster (Jobs take minutes) |
| Post-Processing | Heavy grinding & acid passivation required | Clean finish: Zero to minimal grinding |
| Learning Curve | Years of specialized training needed | Mastered in 2 weeks or less |
| Power Usage | High electrical consumption | 4x More Energy Efficient |
| Heat Impact | High deformation and burn-through risk | Minimal HAZ (No warping on thin sheets) |
TECHNICAL SPECIFICATIONS
| Feature | MA1-35 | MA1-45 | MA1-65 |
|---|---|---|---|
| Max Weld (SS/CS) | 3.5mm | 4.5mm | 6.5mm |
| Aluminium Weld | 3mm | 4mm | 5.5mm |
| Power Supply | 220V | 220V | 220V |
| Wobble Range | 0–4mm | 0–4mm | 0–4mm |
Protection Measures for Hand Welding – THEO MA1 Series
WHAT’S IN THE BOX?
- Integrated Wire Feeder
- Laser-safe Safety Goggles
- International Certification
- 12-month Warranty + Local SA Support
