PORTABLE VENTILATORS
& PVC DUCTING
Confined Space Ventilation. Air Wherever You Need It.
Our Portable Ventilators & Pvc Ducting (CAX) series is engineered for high-pressure air delivery and extraction in confined or hard-to-reach areas. Whether you are purging fumes from a basement or supplying fresh air to a deep-site work zone, these portable ventilators provide the rugged reliability required for tough industrial projects. A compact powerhouse designed to move air through long duct runs without losing pressure.
CAX SERIES | PORTABLE VENTILATORS
| MODEL | DIAMETER | VOLTAGE | POWER | SPEED | AIR VOLUME | PRESSURE |
|---|---|---|---|---|---|---|
| ADF-PVT20 | 200mm | 220V | 130w | 2800rpm | 1300m³/hr | 200Pa |
| ADF-PVT30 | 300mm | 220V | 380w | 2800rpm | 3400m³/hr | 250Pa |
| ADF-PVT40 | 400mm | 220V | 1.1kw | 2800rpm | 7700m³/hr | 520Pa |
| ADF-PVT50 | 500mm | 220V | 2kw | 2800rpm | 12000m³/hr | 800Pa |
High Portability: Lightweight but durable design for rapid deployment on-site.
The Build: High-strength safety grills and an ergonomic carry handle for easy transport.
The Power: Large-capacity motor designed for 24/7 heavy-duty extraction or supply.

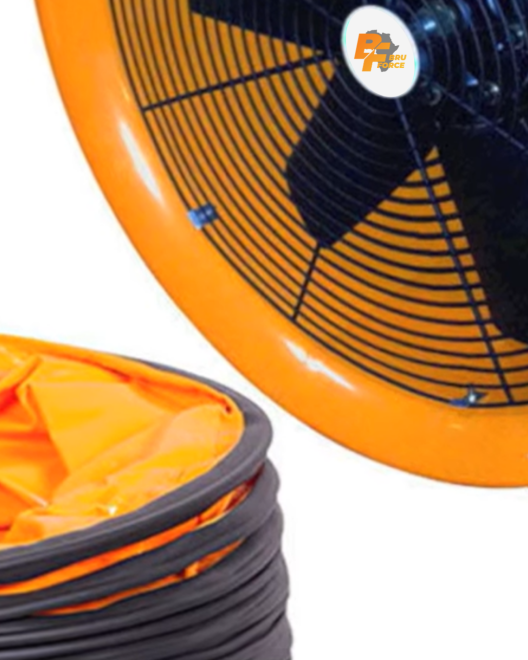

CAX-D | FLEXIBLE CAX VENTILATOR DUCTING
The essential partner for the PVT ventilator, allowing you to direct air precisely where it’s needed.
| MODEL | DESCRIPTION | DIAMETER | LENGTH |
|---|---|---|---|
| ADF-PVT20-DUCT | Spiral Flex PVC Ducting | 200mm | 5m |
| ADF-PVT30-DUCT | Spiral Flex PVC Ducting | 300mm | 5m |
| ADF-PVT40-DUCT | Spiral Flex PVC Ducting | 400mm | 5m |
| ADF-PVT50-DUCT | Spiral Flex PVC Ducting | 500mm | 5m |
Key Benefits Of Our Portable Ventilator Fans
The Design: High-grade, flexible CAX construction that resists tears and collapses under pressure.
The Fit: Engineered for seamless connection to CAX ventilator units for a leak-proof airflow path.
Storage: Easily collapsible for compact storage and transport between jobs. Portable extraction units!
TECHNICAL ADVANTAGES
Direct Airflow: The combination of the CAX fan and CAX-D ducting allows for precision in air placement.
Rugged Mobility: Built with anti-vibration rubber feet and a reinforced frame to handle rough site conditions.
Extreme Endurance: Motors are thermally protected to prevent overheating during long-range extraction tasks.
National delivery available across South Africa!
Contact Bru-Force – Your Portable Ventilators & PVC Ducting Suppliers in South Africa.
